Garner, NC · Water Heater Installation
Garner Water Heater Installation: Sizing, Venting, Permits and What a Quote Should Cover
A tank that has failed at the body cannot be repaired, and the decision that follows is bigger than choosing a model. Size, fuel, venting, the location in the house and the code items around the tank all change the quote, which is why two quotes for the same water heater can differ in scope more than in price.
This page covers new tank installs and replacements, including hybrid units and the expansion-tank work that comes with some of them. Repairing an existing unit is on its own page, and tankless units are covered separately.
Same size, bigger tank or a different fuel?
The easiest replacement is like for like: the same fuel, the same capacity and the same location. It keeps the gas line, vent and electrical supply as they are, and it keeps the cost of the work predictable. Change any one of those and the scope grows.
Sizing should follow how the household uses hot water, not the size of the old tank. Count the people, the largest tub, and how often showers, the dishwasher and the washing machine run together. If the old tank ran out regularly, a larger tank or a unit with a faster recovery rate may be worth asking about. If it was never emptied, a smaller one saves space and energy.
- Gas to gas: the existing gas line, shutoff and flue are usually reused if they are in good order.
- Electric to electric: the circuit and breaker must suit the new unit's rating.
- Gas to electric or the reverse: new gas piping or a new circuit, and venting changes.
- Standard to hybrid heat pump: more space and airflow, a condensate drain and a dedicated circuit.
Venting, gas supply and the code items around the tank

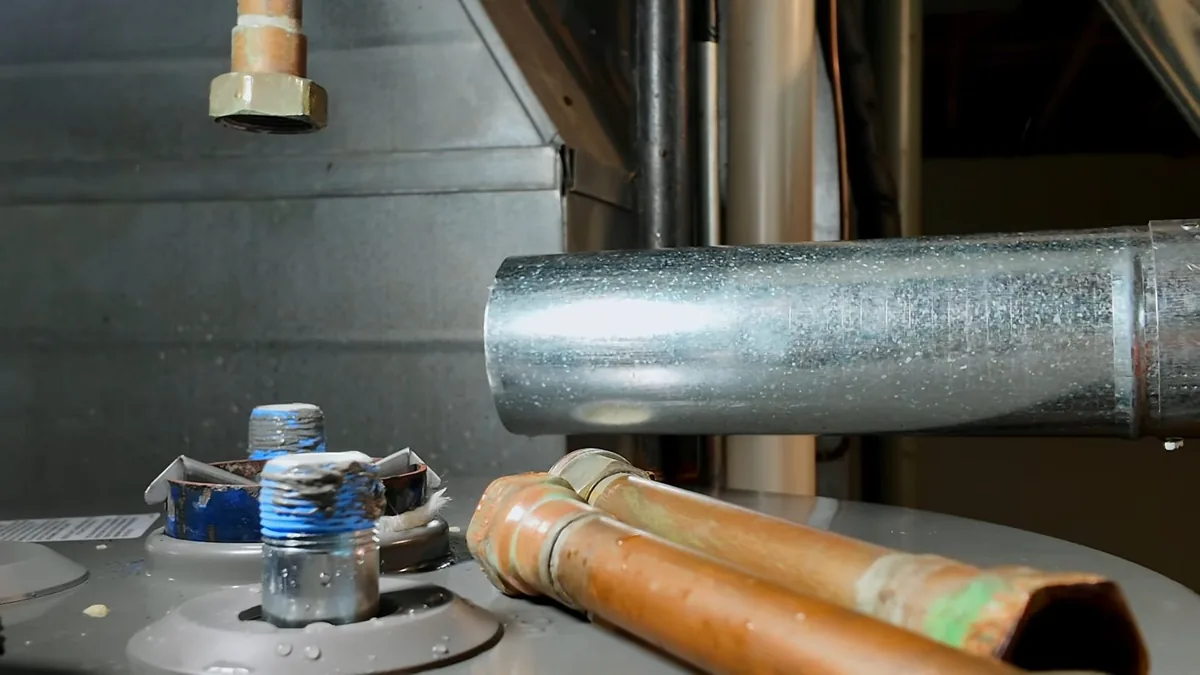

A gas heater is only as safe as its venting. The flue must slope upward, have the right clearances and seal tightly at every joint. If the old vent is corroded, undersized for the new unit or poorly sloped, the quote should include replacing it. A vent that is left alone because it was there is the single most common place a replacement goes wrong.

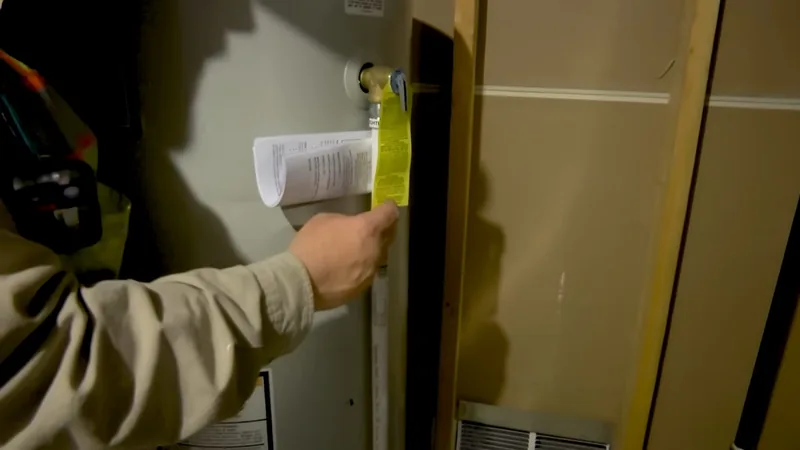

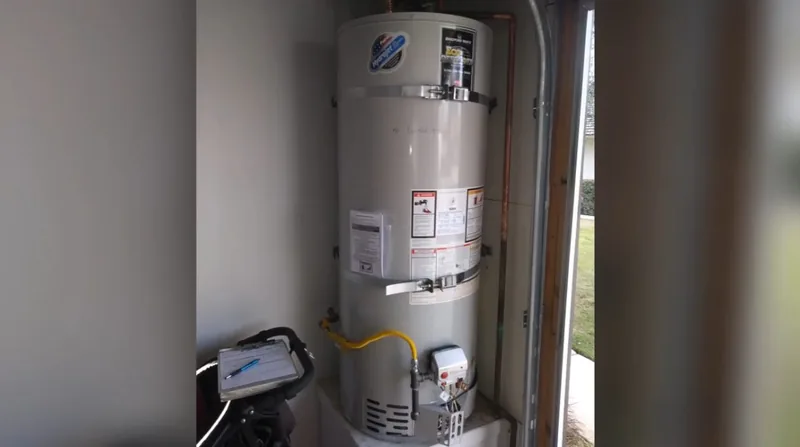

Several items sit around the tank and are part of a proper install. A drain pan with a piped drain in any location where a leak would reach finished space, a temperature and pressure relief valve with a discharge line run to a safe point, a gas shutoff and a sediment trap on gas units, and flexible connectors or proper unions at the water connections.
If the house has a check valve or a pressure-reducing valve at the main, the system is closed and the water has nowhere to expand as it heats. That is the case for a thermal expansion tank. Ask whether the plumber checked for a closed system and whether the quote includes the tank. The same question applies when a hybrid unit is installed. Changes to the gas supply are described on the gas piping changes page.
Hybrid heat pump water heaters: where they fit
A hybrid unit pulls heat from the surrounding air, so it needs roughly a room's worth of air volume and clearance around it. It also cools and dehumidifies the space as it works, and it drips condensate that must reach a drain. A closet with no airflow is a poor location. A garage or a larger utility room is better.
In a heat-pump unit the compressor makes a steady hum, and the tank is taller than a standard tank. Measure the ceiling height before choosing. Ask what happens in a cold space, because most hybrids switch to electric resistance elements when air temperature drops, and the efficiency advantage shrinks during the coldest nights.
Replacing a heater that already failed? Tell the person on the phone the fuel, the tank size and where it sits. It saves a visit just to measure.
What a written quote should include
A useful quote lists scope, not just a total. When two quotes arrive, compare them line by line, because a lower number often leaves something out.
- The make, model, capacity and fuel of the unit being installed.
- Whether venting, gas piping, shutoff valves, the expansion tank and the drain pan are included, replaced or reused.
- Haul-away of the old tank and any disposal fees.
- Whether the permit is included and who pulls it.
- What the manufacturer warranty covers on the tank and on parts, and what labor warranty the plumber gives.
Wide price ranges for different unit types are on the price ranges by unit type, and the plumber confirms the actual price after seeing the unit and the location. If you are weighing a tankless unit instead of a tank, tankless units have different gas, vent and maintenance needs.
Permits, inspections and what Garner asks for
The Town of Garner Inspections Department at Town Hall, 900 7th Avenue, issues plumbing permits for plumbing installs and changes. The Town's owner plumbing permit affidavit says plumbing installations, changes, additions and modifications are subject to permitting and inspection, but it does not name water heater replacement, so Garner's own rule for that job was not confirmed. For reference, Wake County's own permit FAQ says a like-for-like water heater replacement in a one or two-family home may not need a permit when the energy input is no higher, the fuel type, location and venting or piping stay the same, and the work is done by a plumbing contractor who meets the county's requirements; anything beyond that falls under the general plumbing permit rule. Ask the plumber whether a permit applies to your job, who pulls it and when the inspection happens, and call Inspections if you want to confirm.
An inspection matters even when it is not required by the rule. It is the one point where someone other than the installer looks at the vent, the relief line and the gas connection. If the installer says no permit is needed, ask why, and keep the answer in writing.
Garner water and what it means for the new unit
Garner homes are served by City of Raleigh water, and Raleigh's published hardness is roughly 1.4 to 1.5 grains per gallon, which is soft. A softener is not needed to protect a new heater on city water, and the plumber should not add one to the quote for that reason.
If the house is on a private well, hardness varies and a water test comes before the choice of heater. For both situations water softener questions are covered on their own page.
Location, freezing and additions to the house
Wake County winters hover around or just below freezing and occasionally drop into the teens. A heater in an unheated garage or a vented crawl space needs insulated supply lines and a relief discharge that cannot freeze shut. If the old tank sat in the same place and froze lines, say so on the call.
If you are adding a bathroom, a garage apartment or a larger kitchen, the existing heater may not carry the new load. Tell the plumber about the addition so the unit is sized for the finished house. Remodel plumbing itself is outside this page, and a plumber can advise whether the water heater work is part of a larger job or a separate visit.
Moving a heater to a new spot has its own costs in supply lines, venting and drain routing. Ask for that as a separate option so you can see what the move adds. If the replaced unit leaked before it failed, locating a slow leak may be part of the visit, since a slow leak behind the tank can go unnoticed for months.
Water Heater Installation questions in Garner
Should I replace my water heater with the same size?
Same size is the simplest choice, but sizing should follow how the household uses hot water. If the old tank ran out often, ask about a larger tank or a faster recovery rate. If it was never emptied, a smaller unit may be enough.
Do I need an expansion tank with a new water heater?
If the plumbing is a closed system, with a check valve or a pressure-reducing valve at the main, heated water has nowhere to expand and an expansion tank is the usual answer. Ask the plumber whether the system was checked and whether the quote includes one.
Does a water heater replacement need a permit in Garner?
The Town of Garner Inspections Department issues plumbing permits for plumbing installs and changes. A rule specific to water heater replacement was not confirmed for this page, so ask the plumber and confirm with Inspections if you want to be sure.
Do I need a softener to protect a new water heater in Garner?
On City of Raleigh water, which is soft at roughly 1.4 to 1.5 grains per gallon, a softener is not needed for that reason. Homes on private wells should test their water first.
